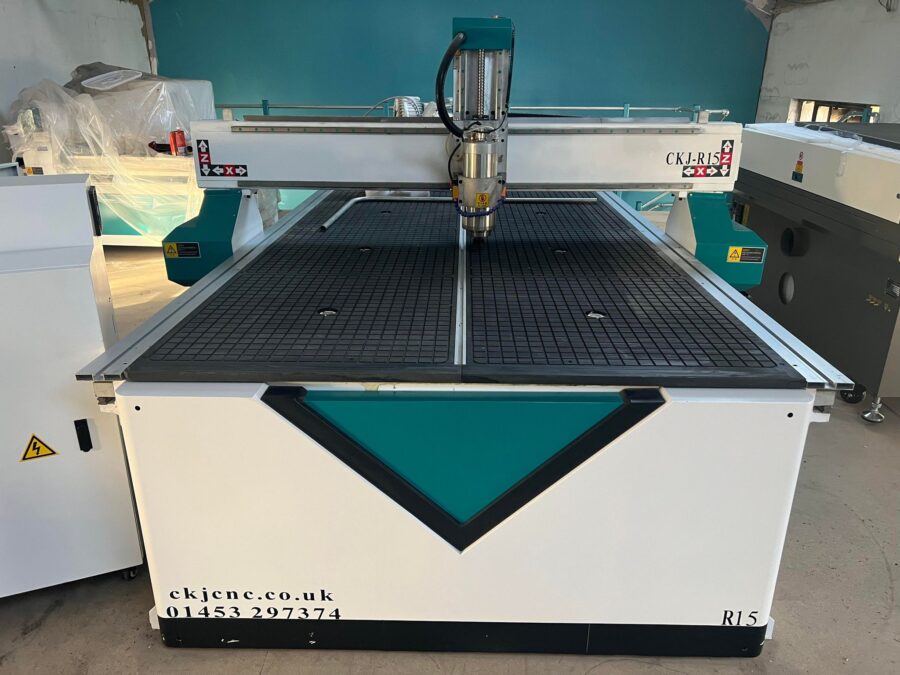

CNC Router CKJ-R15
The CKJ R15 router is another popular machine of ours as it can take sheets that are 10ft x 5ft. This machine is now supplied with 2 5.5Kw vacuum pumps for double the amount of suction. Each pump will do half of the bed.
The R15 has a 12-zone bed with 6 valves.
These machines are used by many different companies from sign makers to special effects and cut many different materials from MDF to aluminium. We can get these machines in single phase but they will be a special order.
We currently have a used machine like this in stock check it out by clicking here
- Linear square rail
- XYZ axis 1500mm X 3000mm X 200mm
- X and Y axis rack and pinion
- Z axis ball screw
- 415v 3 phase
- 4.5kw air cooled spindle (not shown in picture)
- Leadshine microstep drivers
- Oil lubrication system
- Vacuum bed with twin 5.5kw vacuum pumps
- Tool height calibration system
- 6mm and 12mm collets. ER32 (3 phase)
- Refurbished windows 10 laptop with Vcarve Pro and Mach 3 software
- Set up and ready to run
- Basic Training given
- Delivery can be arranged
- Accurate to 0.02mm
Mach3 is an advanced CNC controller for DIY. You can also run this software on Industrial machines. It runs the G-Code on Windows PCs. And it creates a sophisticated control system to control the activity of motors and generators
Vectric Vcarve Pro is fantastic user-friendly software with many tutorial videos and has the capability to import 3D files
We have a post processor on this software created by Vectric for our machines.
Free trial software is available here:
www.vectric.com/free-trial/vcarve-pro
read more on the Vectric website: www.vectric.com
Delivery and set-up of machines up to 1500 mm, within a 100-mile radius of our headquarters in Stroud, Gloucestershire, will be charged at £600 + VAT
For machines over 1500 mm wide, extra carrier fees will apply.
